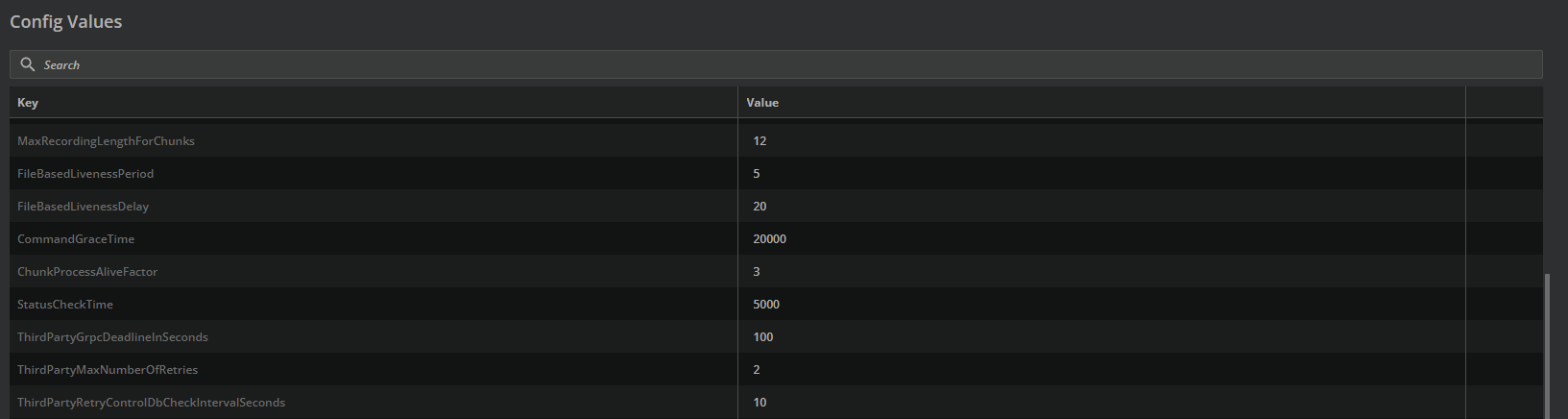

Here, basic config values can be managed.
The value of each field can be modified. Refer to Key Concepts for using the table view and editing values.
For each value, the user has the chance to reset it’s value to default by using the rotating arrow button.
Field Descriptions
|
Field |
Type |
Example |
Description |
|---|---|---|---|
|
ChunkProcessAliveFactor |
integer |
3 |
FileBasedLivenessPeriod * ChunkProcessAliveFactor Factor of how often a file based lifeness check could fail before the module marks itself as failed |
|
ChunkProcessorCommandGraceTimeInSeconds |
integer |
300 |
Maximum time in seconds a command will be executed when it is over the due time. |
|
ChunkProcessorStatusCheckTimeInSeconds |
integer |
5 |
The cycle time of the ChunkProcessor for requesting status from running recordings. |
|
ChunkStartAllowedInThePastInSeconds |
integer |
30 |
Max time in seconds a command's first execution time may lie in the past to be scheduled, set to 0 if no short measure bookings should be allowed |
|
FileBasedLivenessDelay |
integer |
2000 |
This is the time period in seconds Kubernetes grants to the module to come up and send readiness.
Has to be aligned with the Kubernetes cluster settings. |
|
FileBasedLivenessPeriod |
integer |
5 |
This is the cycle time for the modules reporting file based liveness probes. |
|
MaxRecordingLengthInHours |
integer |
12 |
The maximum length of a recording in VidiControl. Some recorders limit the maximal length of a recording. |
|
MaxRetryTimeForNotificationsInSeconds |
integer |
60 |
For notifications that rely on VidiCore items. If no item is available yet, an attempt is made to resend the notification. After this time period specified in seconds, the retry is cancelled. |
|
MaxTimeToWriteToQueueDirectlyInSeconds |
integer |
60 |
If the execution time of a chunk's first command is nearer in the future that this, the scheduler puts the chunk directly to the queue |
|
MinRecordingLengthInSeconds |
integer |
15 |
|
|
NotAssignedBookingOffsetInMinutes |
integer |
2880 |
|
|
NotAssignedCheckIntervalInMinutes |
integer |
60 |
|
|
RecurrenceMaxEndDate |
string |
2050-12-31T23:59:59.000Z |
|
|
RecurrenceMaxOccurences |
integer |
100 |
|
|
RecurringInstantiatorIntervalInMinutes |
integer |
10 |
|
|
RecurringInstantiatorOffsetInMinutes |
integer |
1440 |
|
|
RouterDeviceId |
integer |
1 |
|
|
RouterDeviceName |
|
|
|
|
RouterIpAdress |
|
|
|
|
RouterLevel |
integer |
1 |
|
|
RouterLevelsToSwitch |
|
|
|
|
RouterLevelToUse |
integer |
1 |
|
|
RouterMatrix |
integer |
1 |
|
|
RouterPort |
|
|
|
|
RouterStatusCheckerIntervalInSeconds |
integer |
5000 |
|
|
RouterUseExtendedMsgs |
|
|
|
|
SchedulerCoreGrpcEndpoint |
|
|
|
|
StatusFailureCount |
integer |
3 |
How often in a row a failed status is allowed before the whole command set to fail |
|
StreamingDevices |
|
|
|
|
SystemTimeZone |
string |
W. Europe Standard Time |
|
|
TechDataBackgroundIntervalInSeconds |
integer |
10 |
|
|
TechDataProcessingIntervalInSeconds |
integer |
60 |
|
|
TechDataRemoveUnsuccessfullyInSeconds |
integer |
300 |
|
|
ThirdPartyCreateVidiCoreCollectionsHidden |
boolean |
true |
|
|
ThirdPartyCreateVidiCoreItemsHidden |
boolean |
true |
|
|
ThirdPartyGrpcDeadlineInSeconds |
integer |
100 |
timeout for grpc call to ThirdParty Grpc service - no global setting, must be set on each request. Default is 0 -> no timeout |
|
ThirdPartyMaxNumberOfRetries |
integer |
2 |
|
|
ThirdPartyRetryControlDbCheckIntervalInSeconds |
integer |
10 |
ThirdPartyRetryControl will check the DB every x seconds |
|
ThirdPartyRetryIntervalInSeconds |
integer |
30 |
ThirdPartyRetryControl processes retry entries with last try at least x seconds ago |
|
ThirdPartyServiceEndpoint |
|
|
|
|
ThirdPartyVidiCoreChunkItemLockIntervalInHours |
integer |
48 |
|
|
UiCrashRecordLengthInMinutes |
integer |
|
|
|
UiDefaultRecordingLengthInMinutes |
integer |
|
|
|
UiMaxOccurrencesForRecurrenceFrontend |
|
|
|
|
VIDICONTROL_TAG |
|
|
|
|
VIDICONTROL_VERSION |
|
|
|
|
VidiflowWorkflowApiUri |
|
|
|
|
VIDISPINE_DEFAULT_GROUP |
string |
VPMS_Platform_Default_Group |
third party default group |
|
VIDISPINE_URL |
|
|
|
|
VirtualChunkCollisionDetectorIntervalInMinutes |
integer |
60 |
|
|
VirtualChunkCollisionDetectorOffsetInMinutes |
integer |
2880 |
|
