Video Effects

While editing a video timeline, some scenarios require one to adjust the graphical elements of the timeline while modifying some of its parameters. The following type of segments can be adjusted using video effects:

• Video segments

• Still image segments

VidiEditor allows one to modify the following segment attributes by default (available once per segment):

• Horizontal Position

• Vertical Position

• Scaling

• Rotation

• Opacity

Additionally, video effects are available that must be added to a segment before being available (these can be used multiple times per segment):

• Blur (WRE only)

• Mosaic (WRE only)

The effect functionality must be enabled in the applications configuration as it has impact on the scaling hosting infrastructure. It might be that this feature is disabled in your installation.

Basic Usage of default effect

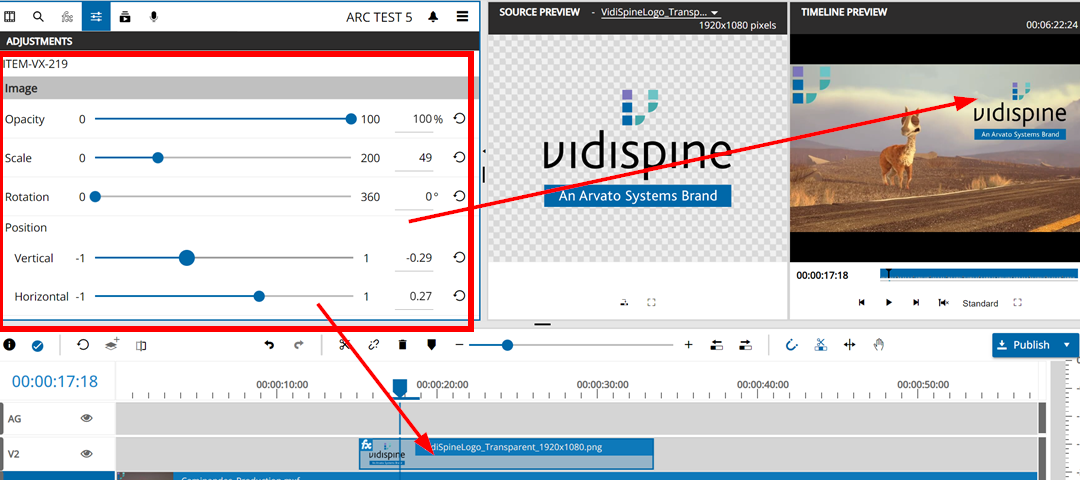

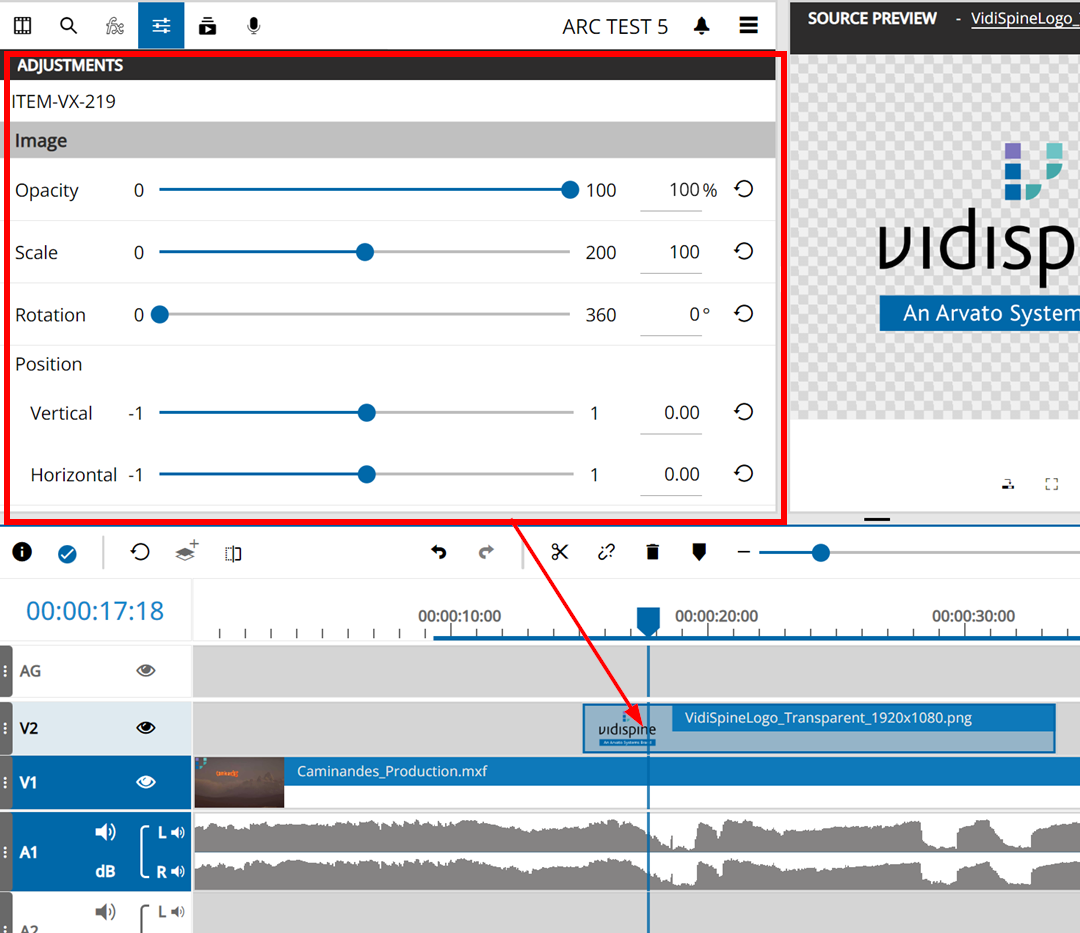

To use effects just select one graphical segment in the timeline and click on the settings panel of the Media Management area:

The supported effects are displayed with their default values. It is not needed to add them to a segment. The default values basically have the meaning of using the elements as they are.

It is easy to adjust the parameter using a slider or while entering a value directly in the input field besides the slider. The result will be displayed in the timeline preview player.

It is also possible to easily reset the effects to their default values while clicking the reset button besides the input field.

Adding Additional effects (WRE only)

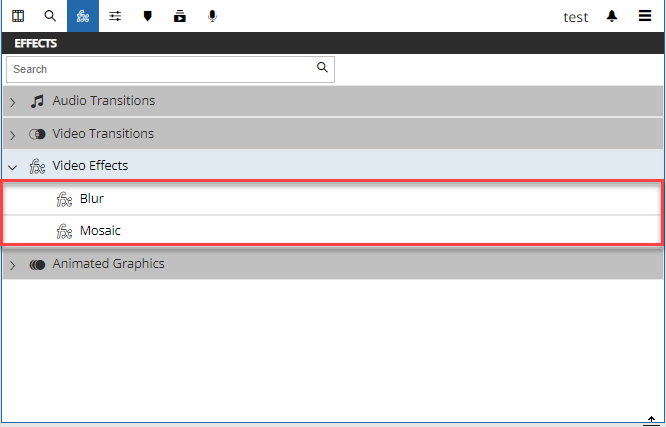

To add an effect not available by default, go to the VidiEditor effects pane and find the wanted effect:

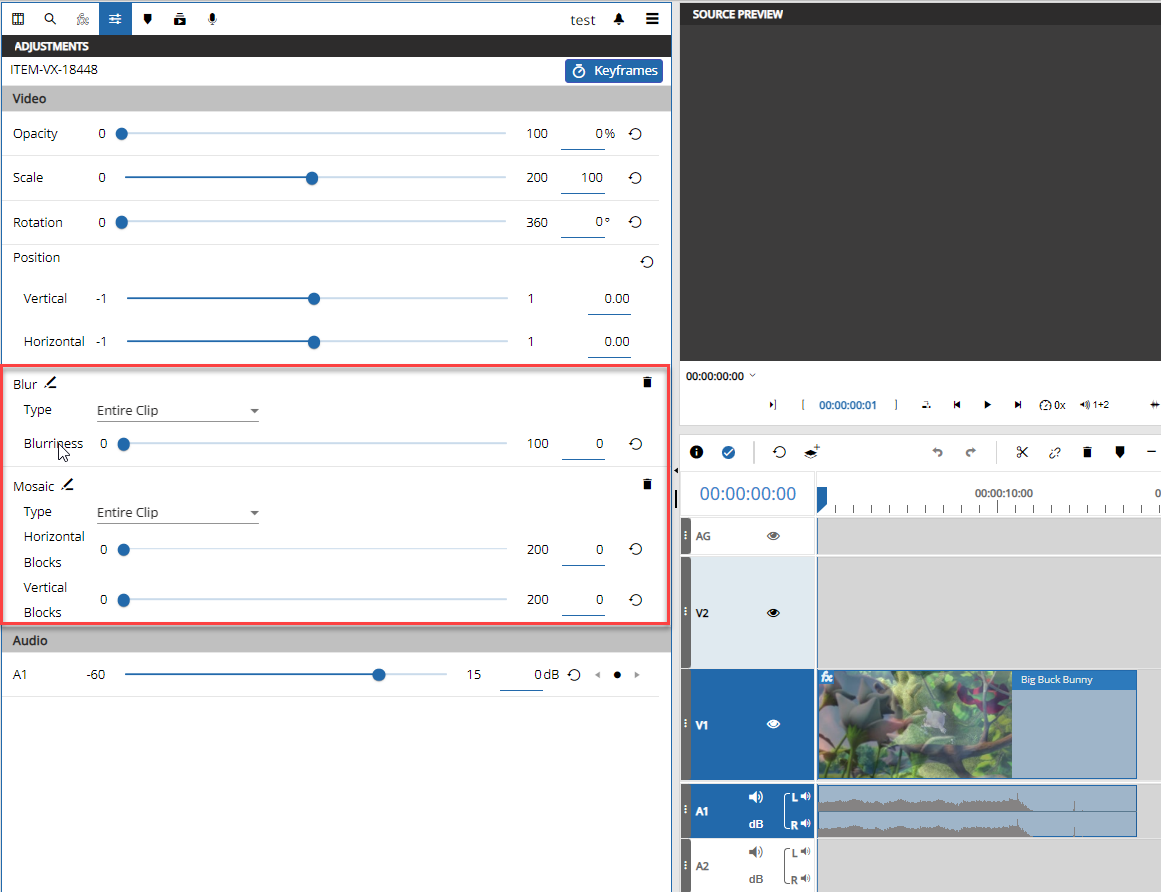

Simply drag it onto a timeline segment to apply the effect. When this is done an effects icon will show upon the segment and the effect parameters will become available in the settings pane for the selected segment.

Where following options are available:

• Blur

  • Rename the effect to better organize the work (E.g.: When blurring different persons)

  • Set the blurriness to define how strong the blur should look like

  • Select a mask as rectangle or ellipse to blur only a part of the video

• Mosaic

  • Rename the effect to better organize the work (E.g.: When pixelating different persons)

  • Set the amount of blocks horizontally and vertically for the visual effect

  • Select a mask as rectangle or ellipse to blur only a part of the video

For Blur as well as for Mosaic, the user can define a mask while selecting it in the settings panes dropdown. The mask will be displayed in the timeline player with a red line that will be ignored on publish. It is only present to help the user better seeing the position.

Following parameters exists for the mask to define where it appears

• Horizontal Position

• Vertical Position

• Width

• Height

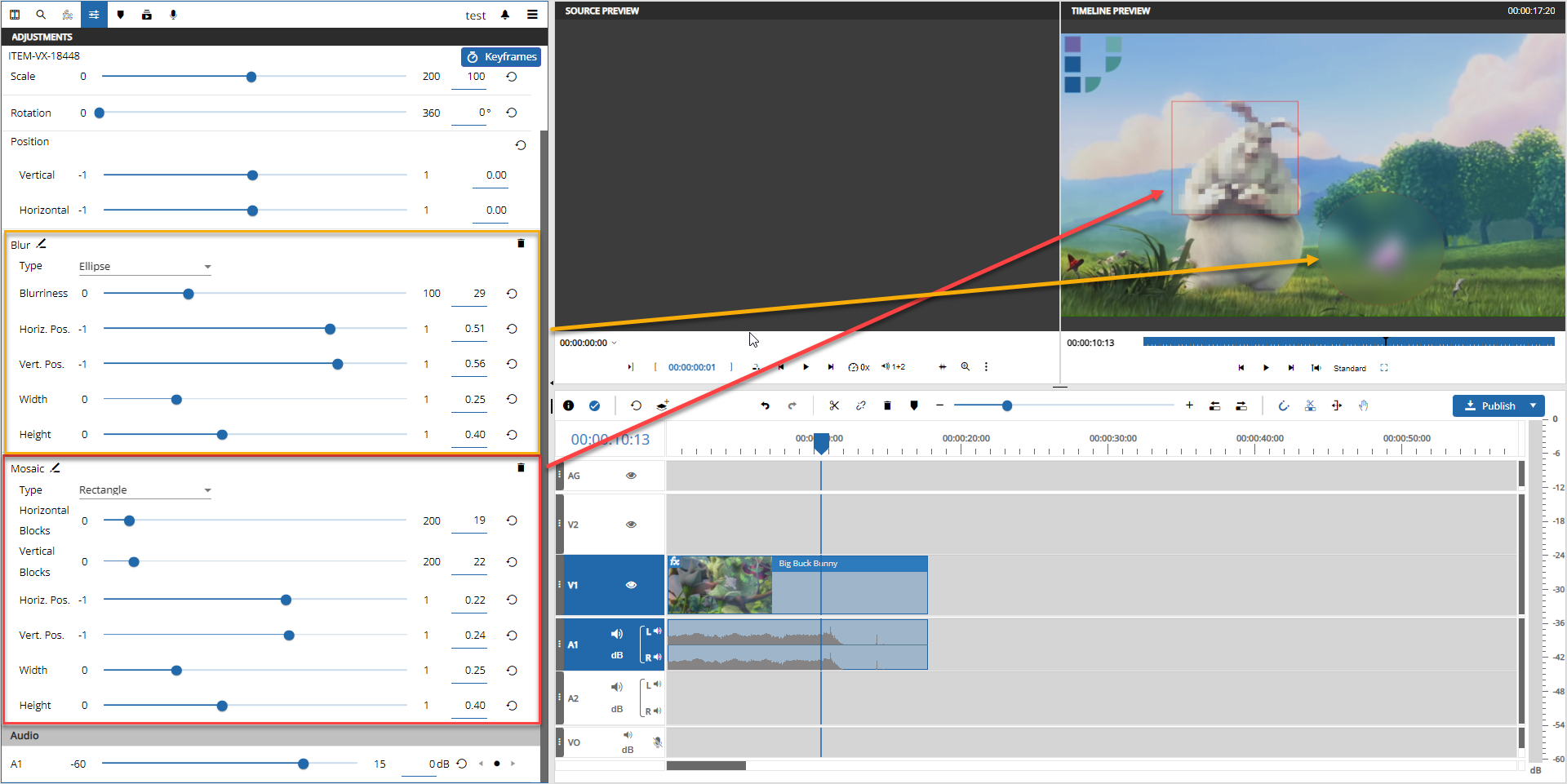

An example using blur and mosaic on a video looks as follows:

Keyframing video effects (WRE only)

When Web Render Engine is used, all above mentioned video effects and parameters can be adjusted with keyframes also to change the effect over time. Please see Keyframe based Editing View (WRE only) [VE UG] for a detailed explanation on how to use keyframes.
