Trigger workflows based on quota notifications [VF UG]

VidiFlow supports triggering workflows based on quota notification on VidiCore storages.

For each storage in ConfigPortal, the limit for storage size or item count can be configured:

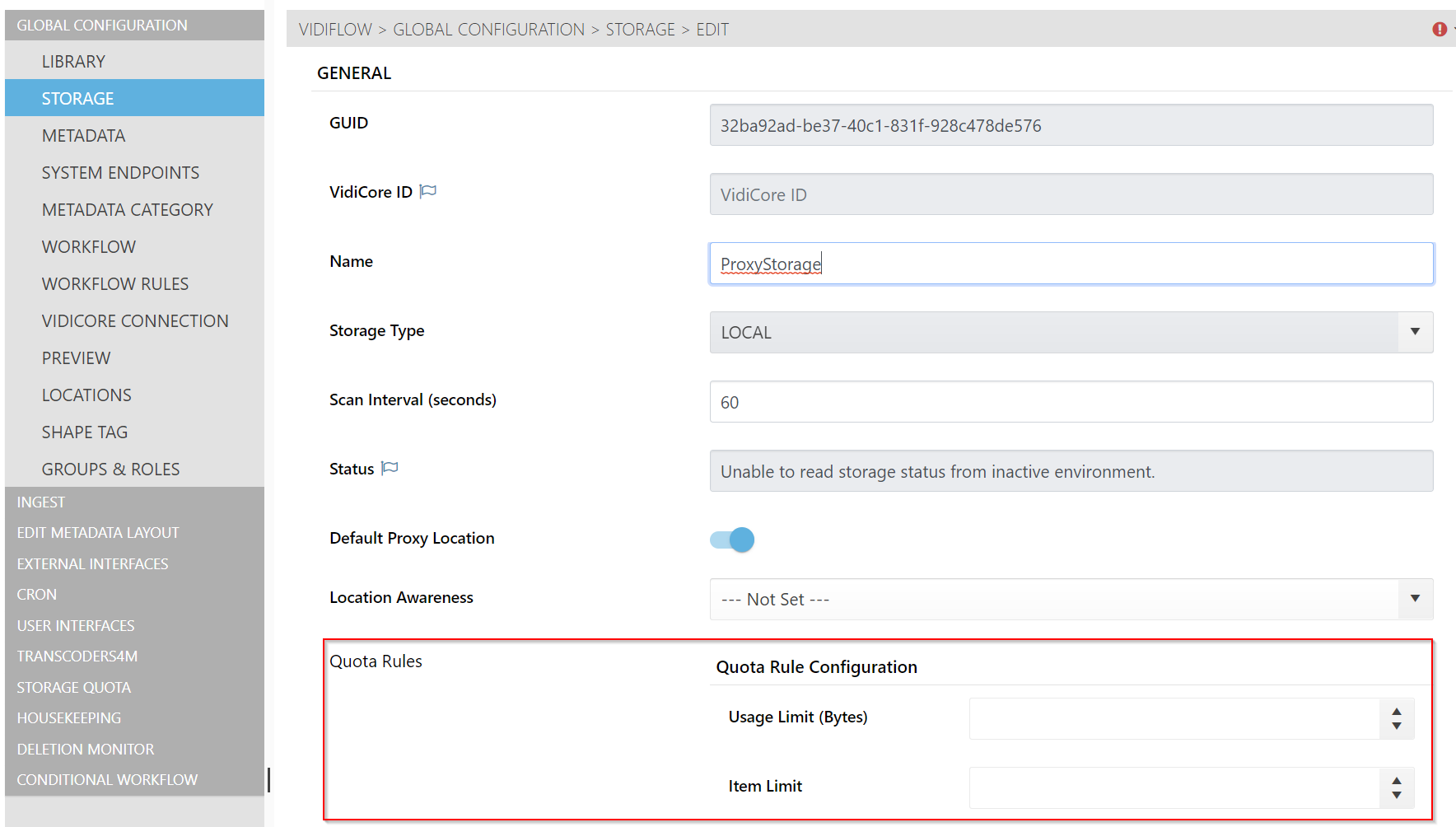

Configuration of quota rules in ConfigPortal

The workflow that is triggered if a quota exceeds is to be configured in the use case page “Storage Quota”:

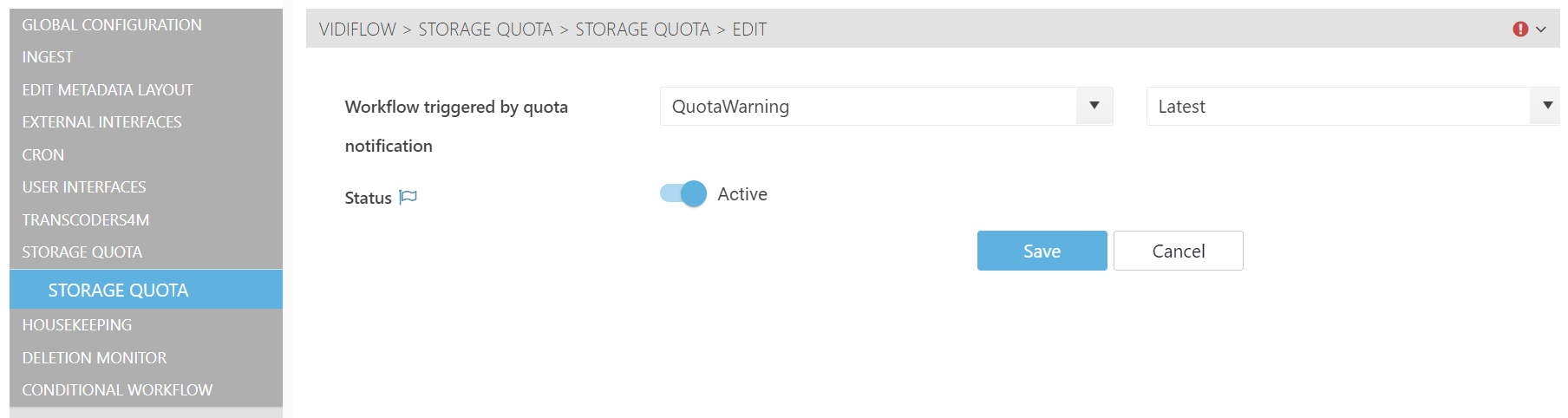

Workflow selection for quota notifications

The workflow input parameters need to have the following structure:

  • StorageID (type: string)

  • Quota (type: Json)

  • Sample input for Quota:

{"QuotaRuleId":"VX-31",
"ItemLimit":"10",
"ItemUsage":"1",
"StorageLimit":"100",
"StorageUsage":"50"}
