Area: Create a Booking [VCon UG]
Reaching the Create a Booking Area

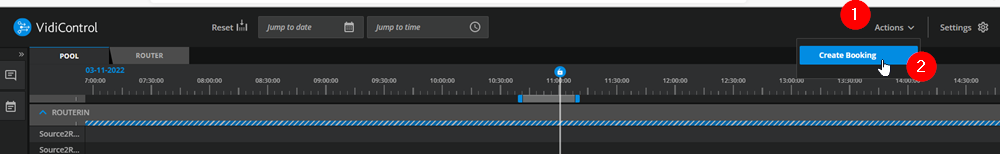

The “Create a Booking Area” can be reached from the main UI by selecting the “Create a Booking” option (2) from the “Actions” dropdown (1).
![](../../__attachments/2482275912/image-20221103-100128.png?inst-v=c263b046-0db3-4e5e-9b28-d475c958150e)
The Create a Booking Area Overview

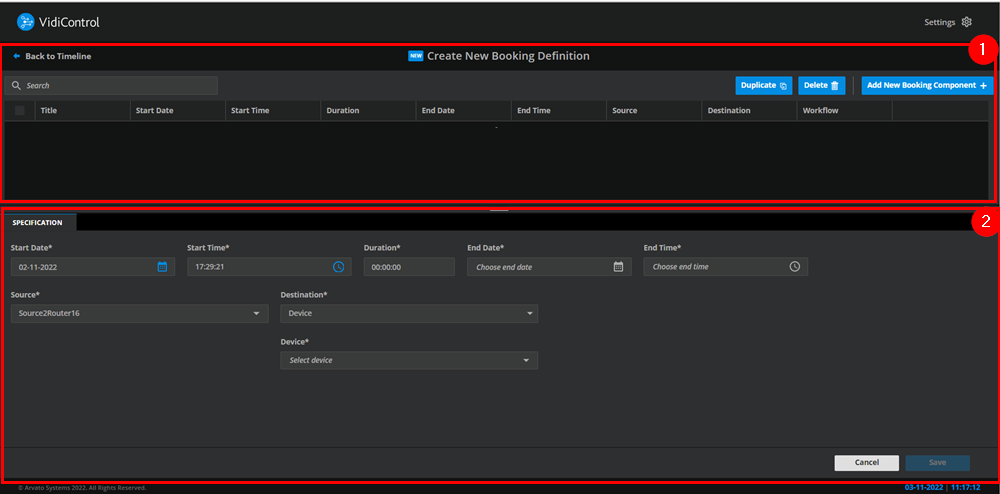

The screenshot below represents the entirety of the “Create a Booking Area”.
The area can be broken down into the following sections:
Search (1)
Specification (2)
![](../../__attachments/2482275912/image-20221103-101756.png?inst-v=c263b046-0db3-4e5e-9b28-d475c958150e)
Section: Search
This section of the area enables users to find specific bookings components (Key Concepts [VCon UG] | Booking-Component).

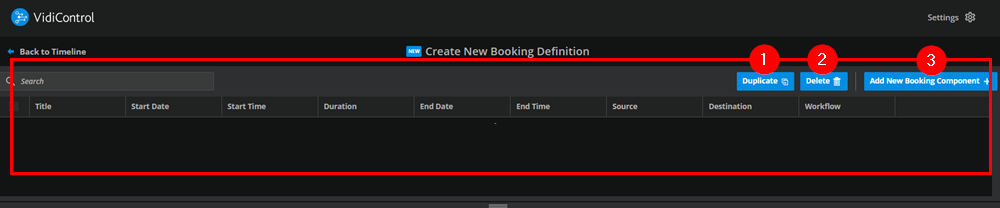

![](../../__attachments/2482275912/image-20221103-101500.png?inst-v=c263b046-0db3-4e5e-9b28-d475c958150e)
Based on the matches displayed in the search result list, users can then perform the following actions.
Duplicate (1): Selecting a specific item, users can use the values for an existing booking component and prefill their new booking component.
Delete (2): Selecting a specific item, users can choose to delete an existing booking component.
Add New Booking Component (3): This gives you the option to create an empty booking component.
Section: Specification
This section, which acts a tab, can be used to specify the main parameters for each booking component. Users can have these prefilled by selection the “Delete” action in the search section.

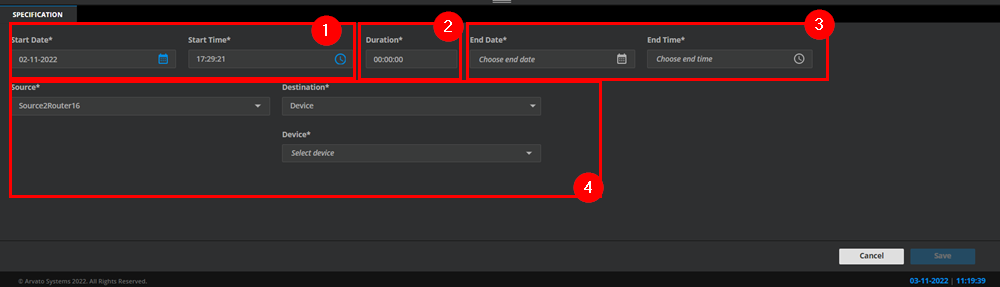

![](../../__attachments/2482275912/image-20221103-102323.png?inst-v=c263b046-0db3-4e5e-9b28-d475c958150e)
The following fields are available:
Start Date/Time (1): These specify the starting date for the booking component to begin recording.
Duration (2): This specifies how long the recording must last once initiated. This can be used as an alternative to the end date/time parameter.
End Date/Time (3): These specify the end of the recording. This can be used as an alternative to the duration parameter.
Source and Destination (4): This specifies the ingest source for the booking component and the intended recording. The destination parameter specifies the devices or allocation of devices (port) in the form of a pool used for the recording.

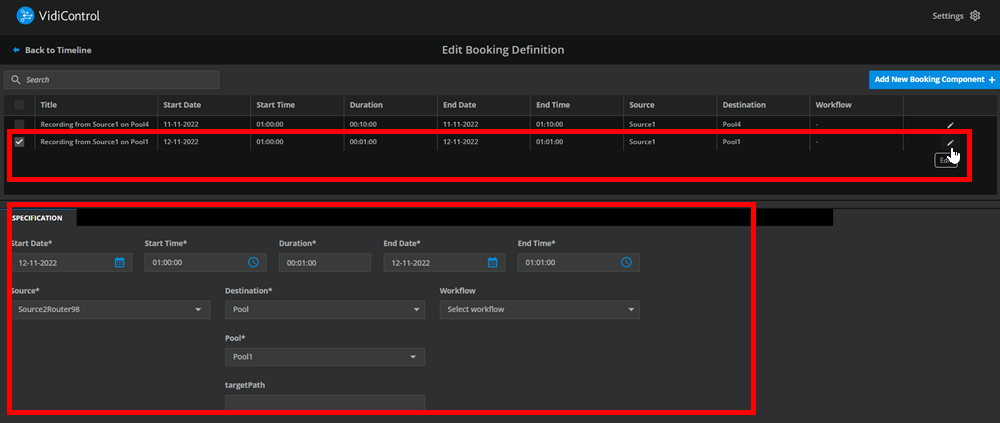

Acting as tab, is anchored to the booking component one is either creating or selected for editing. As such, switching to a different booking component in the list will express the respective values in the specification tab.
![](../../__attachments/2482275912/image-20221107-151551.png?inst-v=c263b046-0db3-4e5e-9b28-d475c958150e)
