Spectrum Playout
The Spectrum Playout module is a module that allows control of a Spectrum playout through a web service. Currently, the Spectrum is controlled by the Spectrum Player API, which is a DLL that cannot be directly used by a web browser.
Setup
The installation of a Spectrum playout is done by a dynamic playbook. Below is an example (91_vpms3.playoutspectrum.v2.yaml):
################################################
# playoutspectrum #
################################################
---
playoutspectrum:
base:
default:
#######################################################
# App Paths / subpaths / routes #
#######################################################
app_path_playoutspectrum: '/playoutspectrum'
---
playoutspectrum:
playbook:
name: PlayoutSpectrum
abbreviation: playoutspectrum
default:
endpoints:
http:
fqdn: "{{ (default_endpoint_scheme + lookup('prepared_config', 'kubernetesPublicEndpoint') + '/' if not lookup('prepared_config', 'kubernetesPublicEndpoint').endswith('/') else '' | string) | urlsplit('hostname') }}"
helm_chart:
install: true
chart_name: playoutspectrum
chart_subpath:
chart_folder: VidiControl/Playout/Spectrum
chart_category: VPMS
chart_namespace: "{{ server_config.system.name }}-vctl"
chart_instance_name: playoutspectrum
chart_version: 24.4.243832-prerelease
chart_values:
hull:
config:
general:
globalImageRegistryToFirstRegistrySecretServer: true
fullnameOverride: vctlplayout
data:
installation:
config:
customCaCertificates:
{% for key, value in vpms3.global.system.ssl.custom_ca_certs.items() %}
{{ key }}: "{{ (value | singleline) + '\n' }}"
{% endfor %}
endpoints:
playoutspectrum:
uri:
playoutspectrum: "{{ default_endpoint_scheme + lookup('prepared_config', 'kubernetesPublicEndpoint') + vpms3.playoutspectrum.base.default.app_path_playoutspectrum }}"
specific:
ingress:
controllerClass: "{{ vpms3.global.system.ingress.controllerClass }}"
playoutspectrum:
tag: "24.4.243832-prerelease"
allowedhosts: '"*"'
objects:
registry:
vpms3:
server: "{{ vpms3.global.docker.registry.endpoint }}"
username: "{{ vpms3.global.docker.registry.user }}"
password: "{{ vpms3.global.docker.registry.pass }}"
ingress:
playoutspectrum:
tls:
"{{ lookup('prepared_config', 'kubernetesPublicEndpoint') }}":
hosts:
- "{{ lookup('prepared_config', 'kubernetesPublicEndpoint') }}"
No special configuration besides the version of the Helm chart and the Docker images is necessary. Setup can be done using the tag “playoutspectrum”.

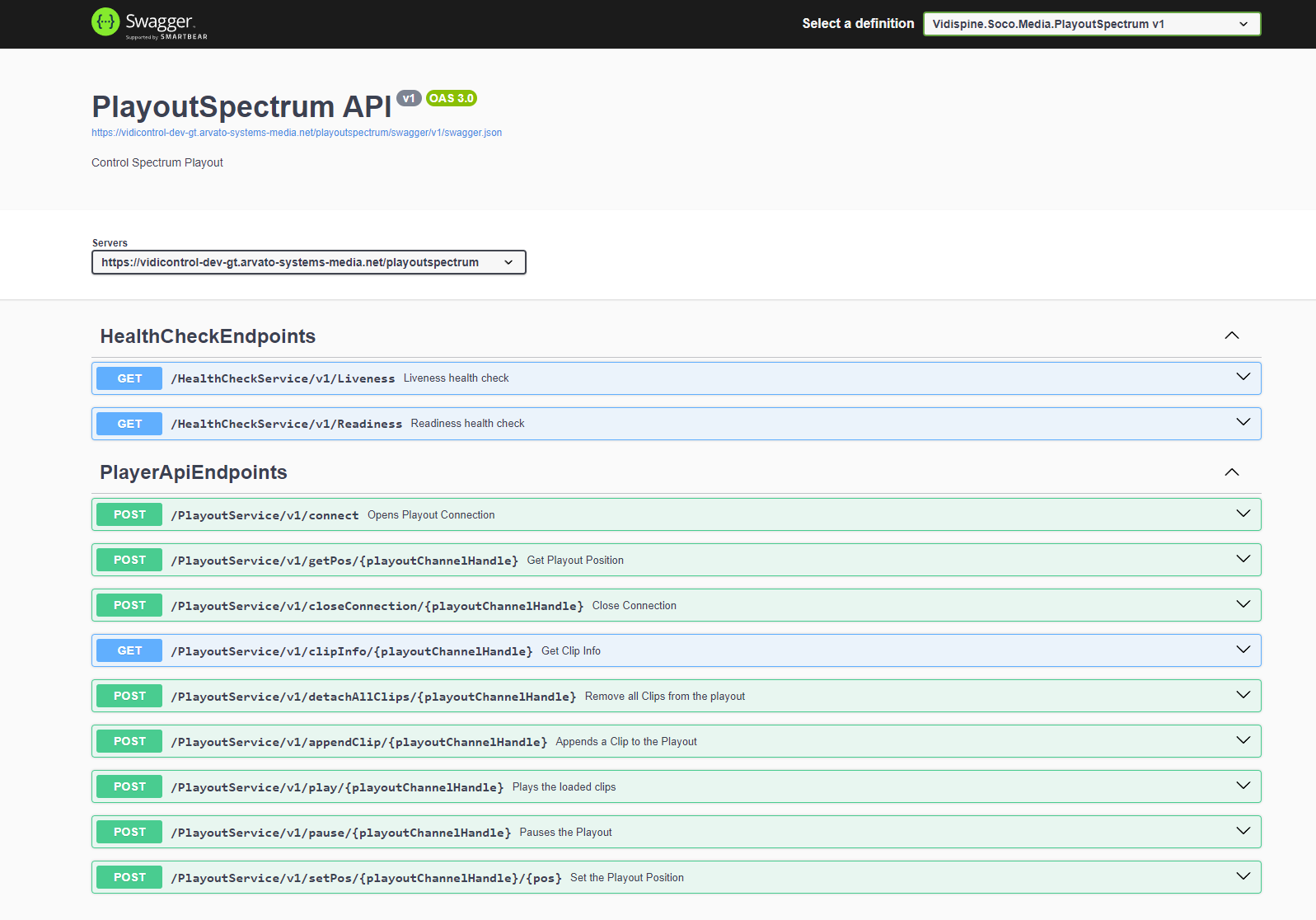

Then a set of endpoints has been created which need no further configuration as all necessary information can be provided in the calls.
