Handle Contract updates on tasks, workflows and rules

Workflow Designer comes with a feature to identify contract updates automatically. It is also capable to perform these updates automatically. This is to describe how it’s done.

Step 1: Verify tasks versions

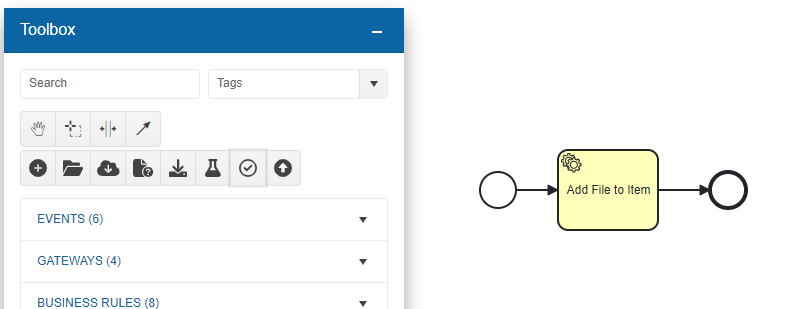

With the button “Verify task(s) versions” from the button area, all selected tasks are checked for contract updates.

Then, all tasks having a contract update, are marked with a yellow background color.

Step 2: Update tasks to latest version

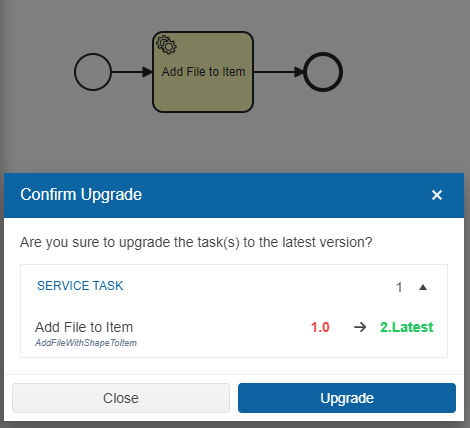

With the button “Update task(s) to latest versions” from the button area, an update dialog can be opened:

A click on “Upgrade” then automatically updates the tasks:

• The newer version is used

• All parameters which were not changed regarding name and type, are taken over

• If parameters are missing, the task will be marked red for manual upgrade

• All connectors will be kept

• Boundary events will be kept if they are still available in the new contract or marked as to-be-removed otherwise

• The existing reference workflow variable will remain unchanged
