VidiFlow [C ARC]

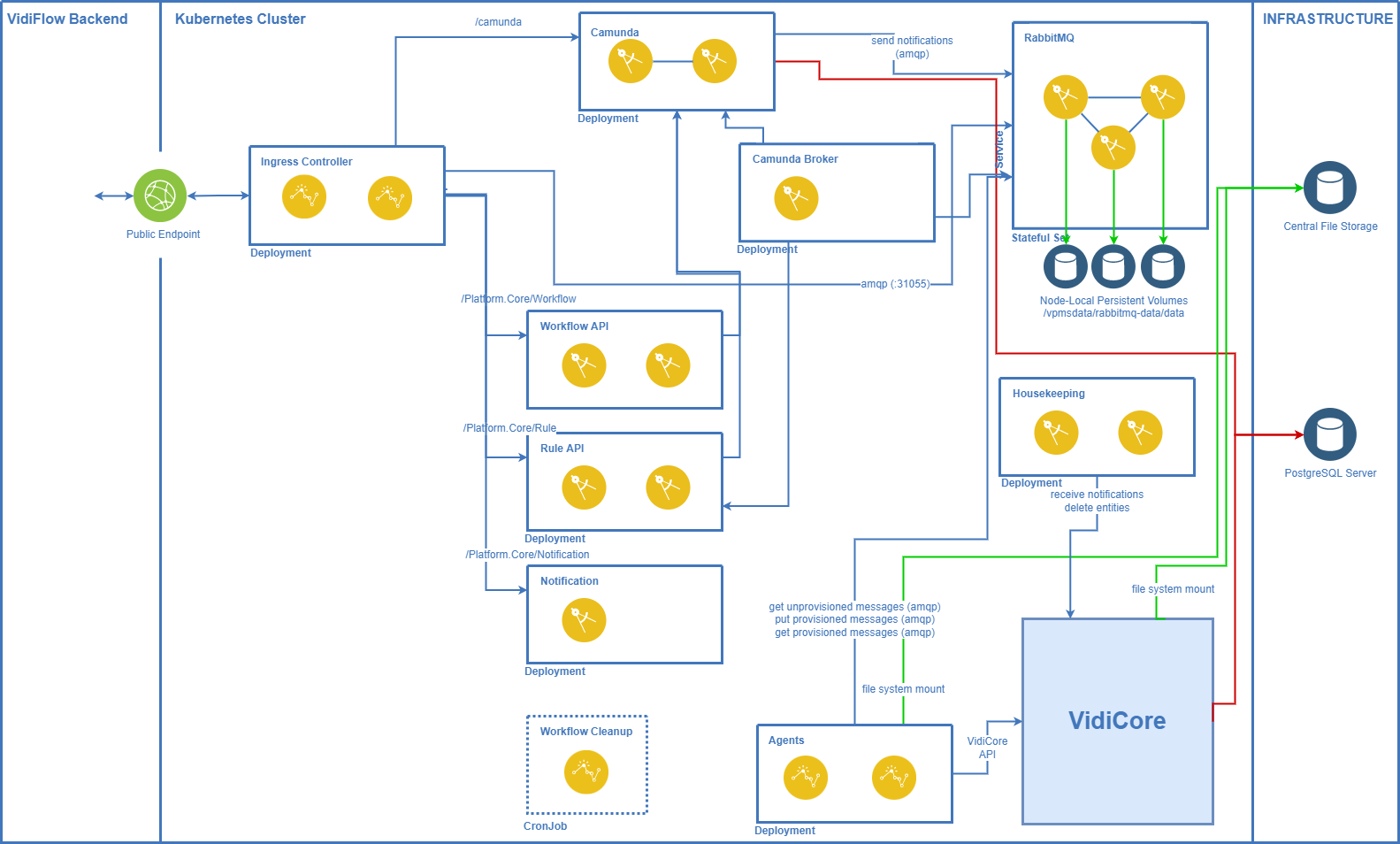

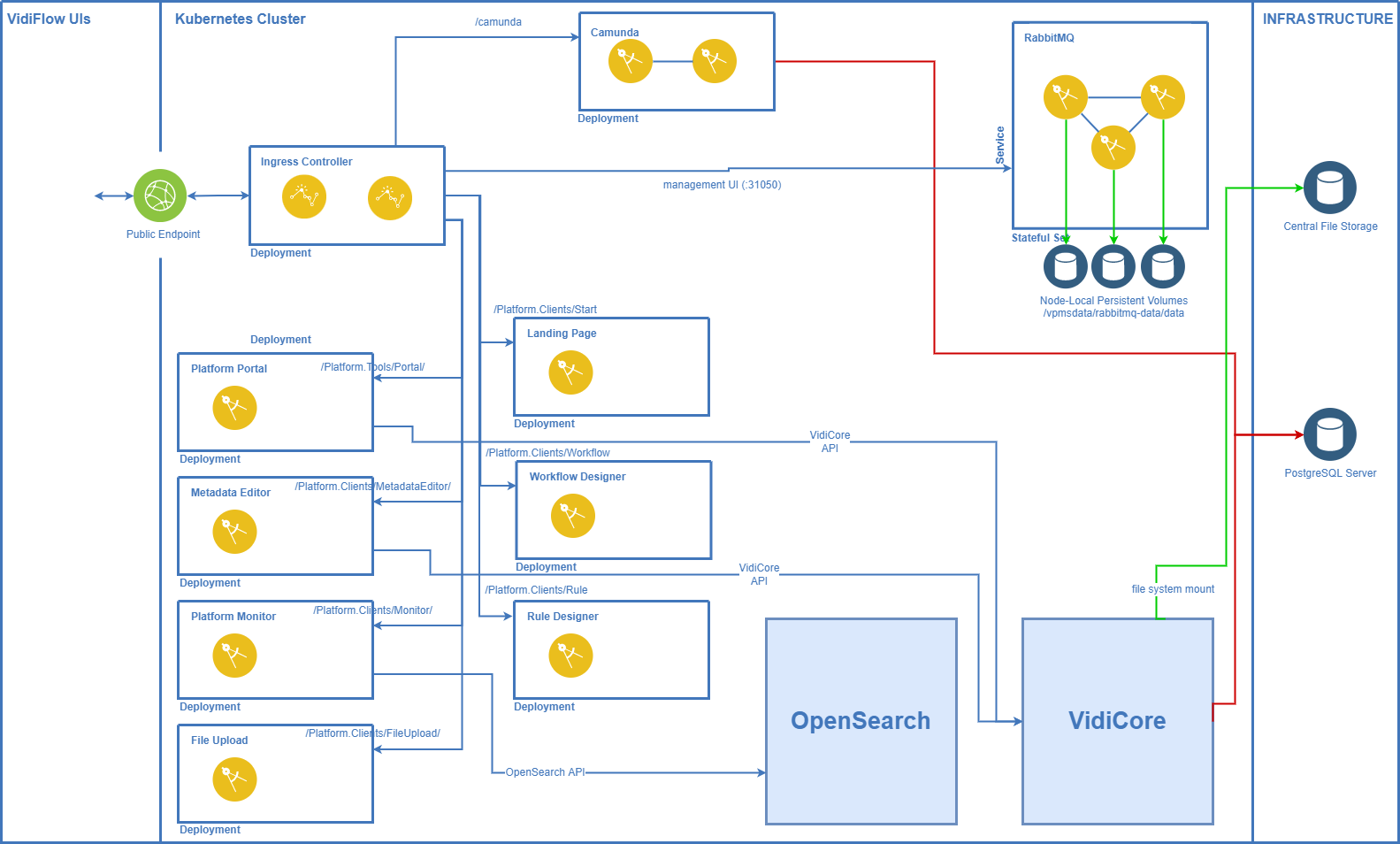

These diagrams show how VidiFlow is deployed to a Kubernetes cluster. The first diagram focusses on backend components and APIs. The second one on user interfaces provided by VidiFlow.

Please note that these diagrams do not show all VidiFlow components. In particular:

• Not all communication paths between the components are shown.

• ConfigPortal and AuthService are not shown - although many components directly interact with them.
