Placeholders [VCon UG]

As a principle, Placeholders are considered as VidiCore Collections holding inheritable metadata.

There are different ways to deal with placeholders in VidiControl.

Create a new Recording based on a placeholder from VidiControl UI

On the timeline view, the Lane Header Context Menu, the Lane Context Menu and the Actions Menu offer possibilities to create a new recording based on a placeholder. This will open the collection search dialog:

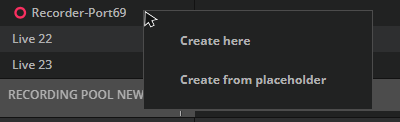

Lane Header Context Menu

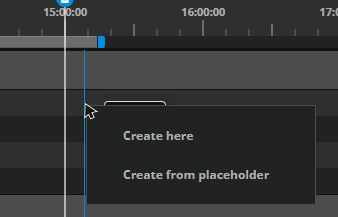

Lane Context Menu


Actions Menu

Also, in the Booking Definition, a placeholder can be selected by entering a VidiCore Collection ID or by using the Collection Search dialog. Please refer to Area: Create a Booking Definition [VCon UG] | Section:-Metadata-and-Placeholder-ID

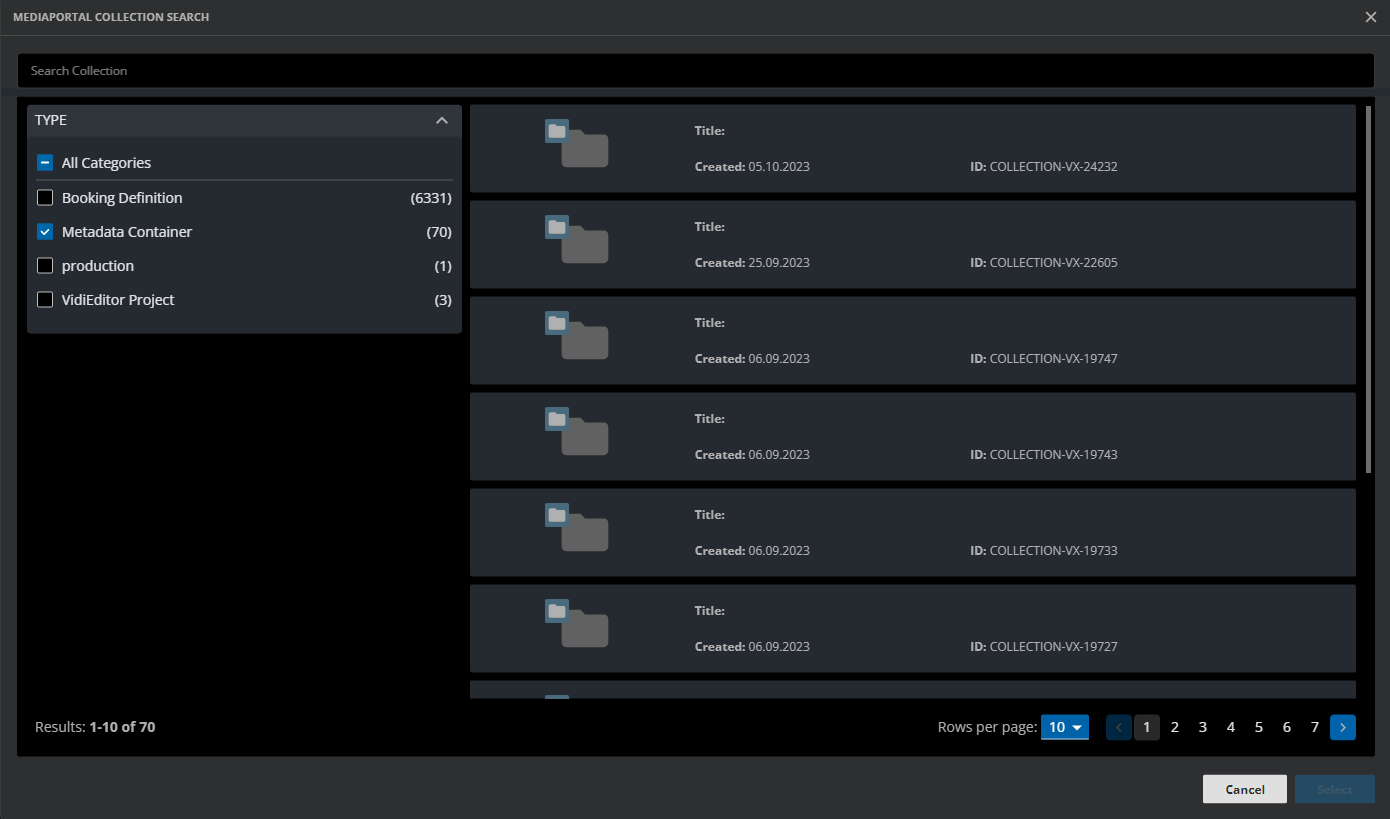

Collection Search Dialog

Create a placeholder-based recording from External

One can open VidiControl with the URI

CODE
<host>/vidicontrol/create-booking-definition?placeholderId=<VidiCoreCollectionId>

This will open the Booking Dialog with the preloaded placeholder to create a new recording based on a given placeholder VidiCore collection ID.

Example

The URI

CODE
http://192.168.1.1/vidicontrol/create-booking-definition?placeholderId=COLLECTION-VX-27071

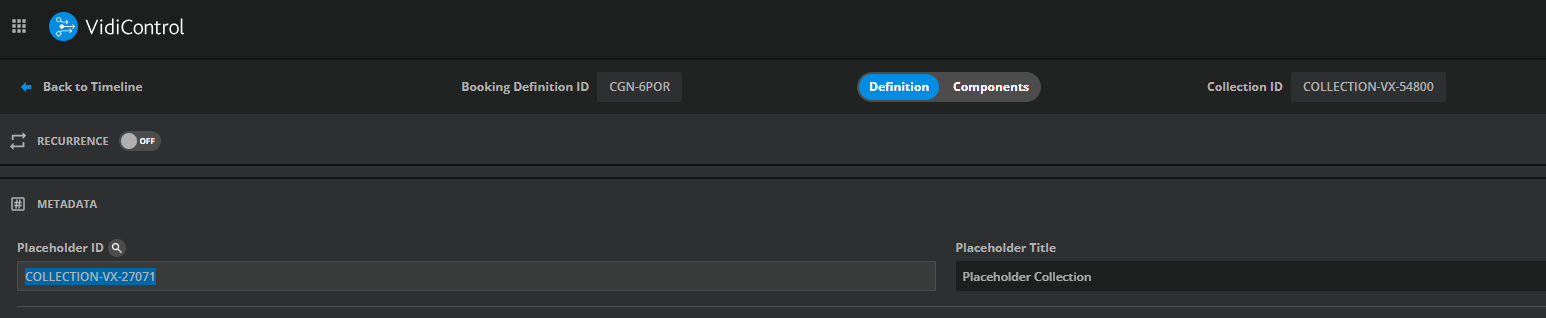

opens the Booking Dialogue with a pre-filled placeholder and metadata set:


Create a placeholder-based recording from MediaPortal

This feature can be used to create a placeholder-based recording out of MediaPortal. Please refer to MediaPortal Configuration Documentation https://kb.vidinet.net/mediaportal/latest/context-menu-items-mp-og .
