Capabilities

On this page, on can manage capabilities that can be attached to pools and devices.

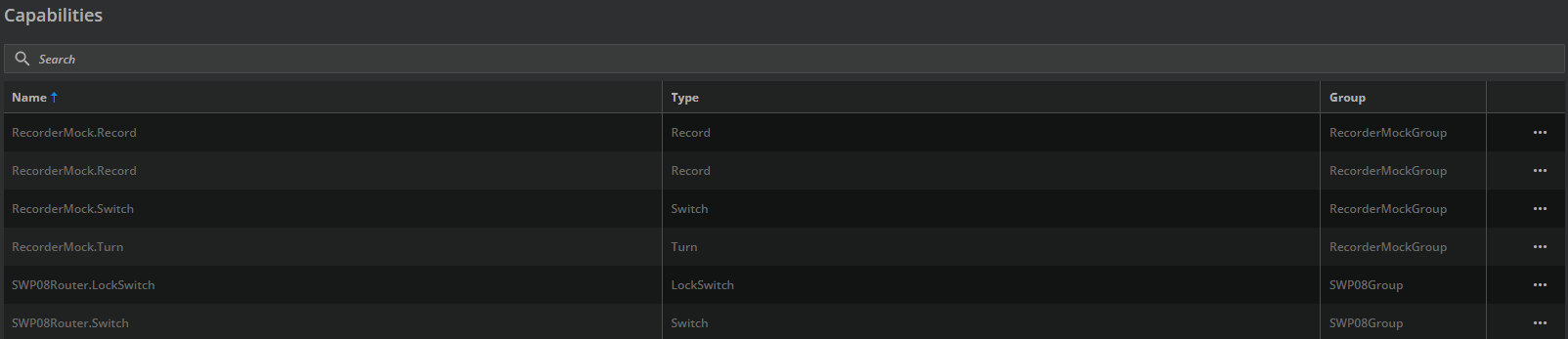

2023-07-14 11_58_44-VidiControl Configuration.png

For each entry, there is a context menu entry “Edit Capability” to modify the Capability configuration.

Edit Capability

A modal dialogue opens to manage the Capabilities properties.

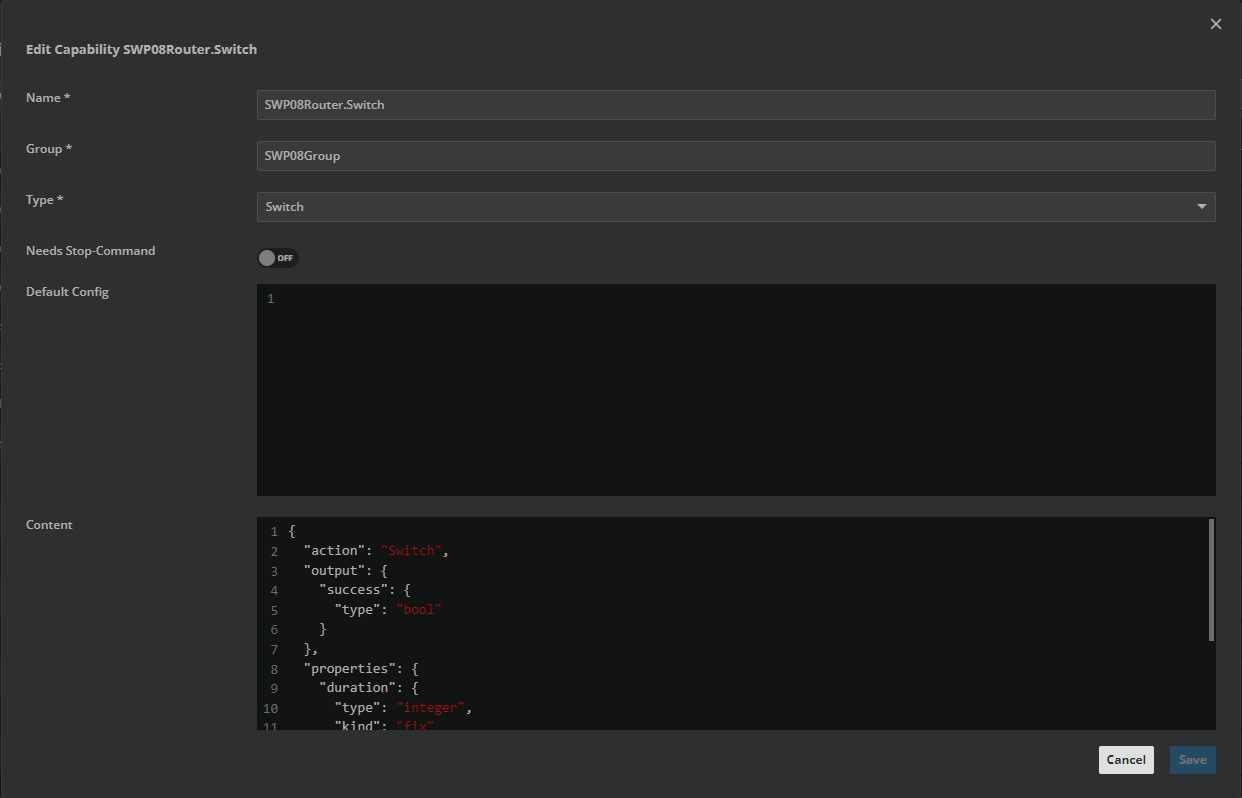

2023-07-14 12_46_42-VidiControl Configuration.png

The following fields are available:

  • Name

    • Mandatory field.

  • Group

    • The name of the group for the capability.

    • Mandatory field.

  • Type

    • Read-only.

    • Mandatory field.

  • Needs Stop Command

    • Read-only.

    • Mandatory field.

  • Default Config

    • Read-only.

  • Content

    • The Capability configuration based on the Capability vendor.

    • More information can be found in Capability Content

Changing a Capability content can cause several damage to the system, i. e. if there are planned recordings that match with an older version of the content field.
