Filters in MediaPortal
Definition
This page allows one to perform the general configuration for filters.
Enable or disable the workspace option
Define if workspaces should be listed (for all users) above or below the filter
Is the global definition of filter value sorting either alphabetically or by amount
The user can adjust the sorting on their own

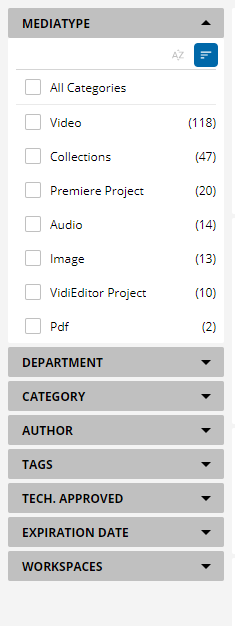

Filter card handling: Disabled → Only one filter open at a time, Enabled → Multiple open filter cards
Show pre-defined date field values - Will show on every Date field the option to select a fixed time frame:
User defined sorting - allows the users to change sorting on filters manually
Disable/Enable saved searches: Shows the saved searches in folder feature

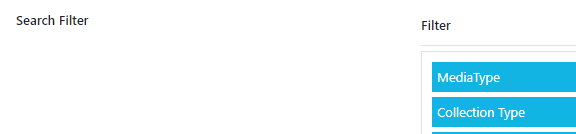

Saved searches position: Defines if the saved searches a shown above/below other filters
Automatically extend saved searches: Have the area with saved searches automatically extended

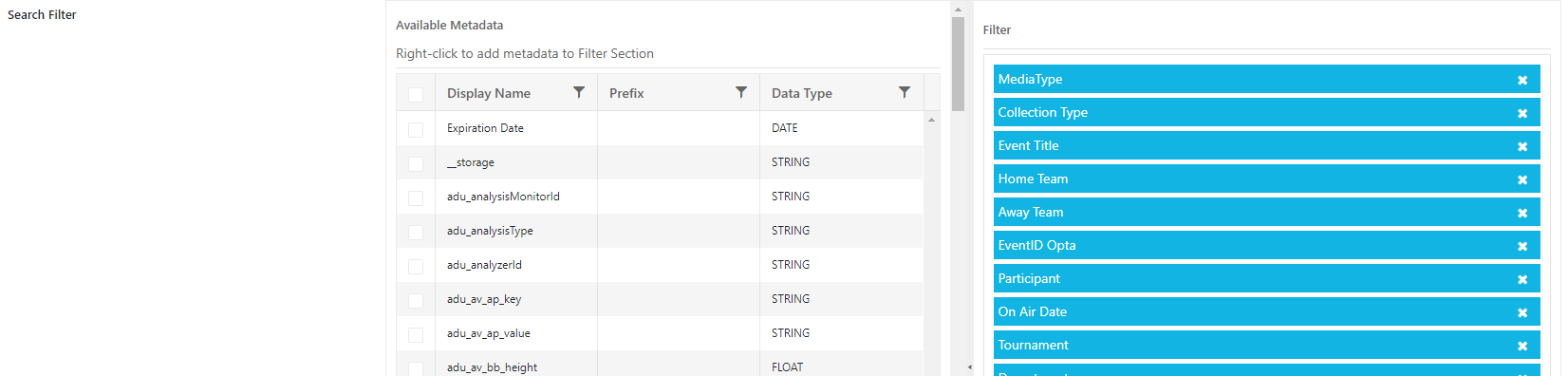

Define metadata values which are listed as filters.
Note: In order to display items and collections under MediaType, add both values to the filter.
All item/collection related metadata can be picked for the filter.
Depending Filters

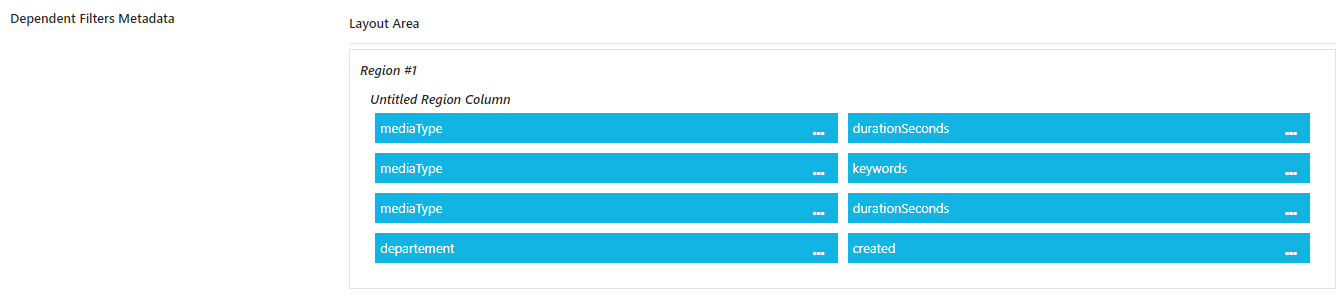

Set relations between values from a specific metadata field and open corresponding metadata field on filters.
Left: Source metadata and values that opens another filter card
Right: Target metadata card which is visible once a corresponding value on source has been selected
Example

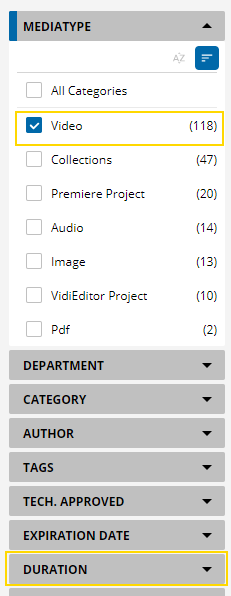

I want to open the duration filter when video is selected on mediaType
1: Open Control, Search for metadata mediaType and add to the left bag

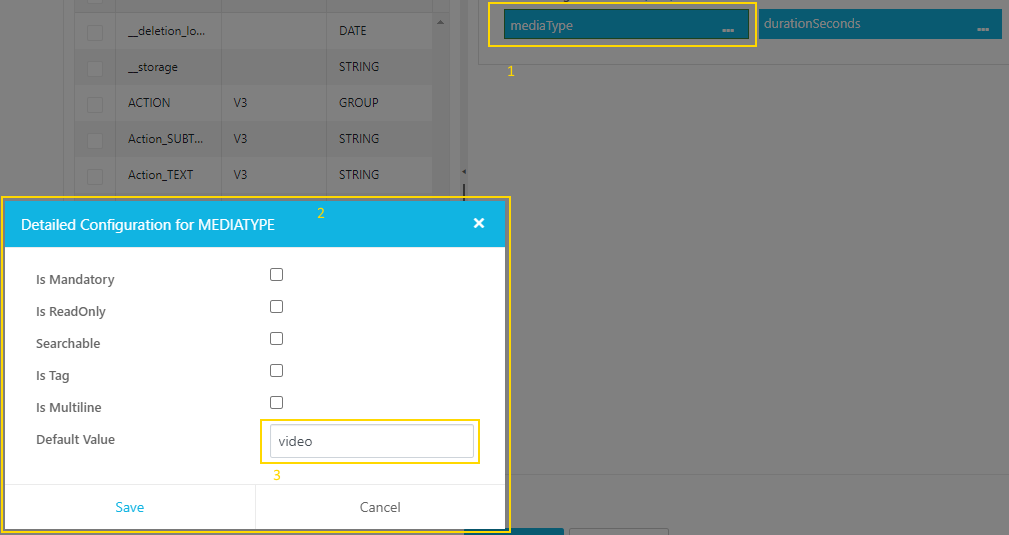

2: Open Detailed Configuration on the context menu button '…'
3: Select value from drop down which a user can select and should open a new Filter Card
4: Select metadata which should be opened to the right bag
Hint: For adding additional Value - Field relations add multiple entries. E.g. Open Duration and Keywords if the user enables video. Create config relation for Mediatype video → Duration & Mediatype video → keywords
Be aware, that not all configurable controls options in this control have an effect on the Filter relation.
Negative Filter
In order to exclude a value from the filter. The user can hold the SHIFT-Key and click on the box. This will turn it red and show a minus. The following image shows where this values does not occur.
