Toolbar Options

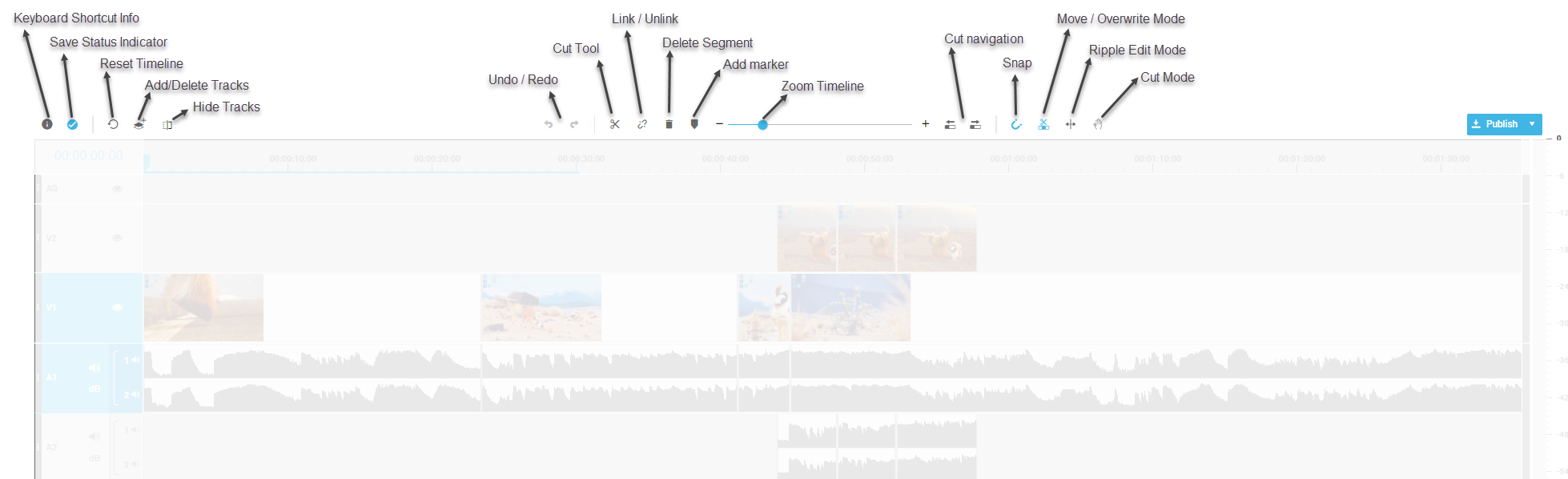

When working on the timeline area, users will notice the timeline toolbar. It contains a series of options and functions to facilitate the editing process when assembling a sequence. All options will be explained briefly below but most of them having a more detailed explanation in the various chapters of this documentation.

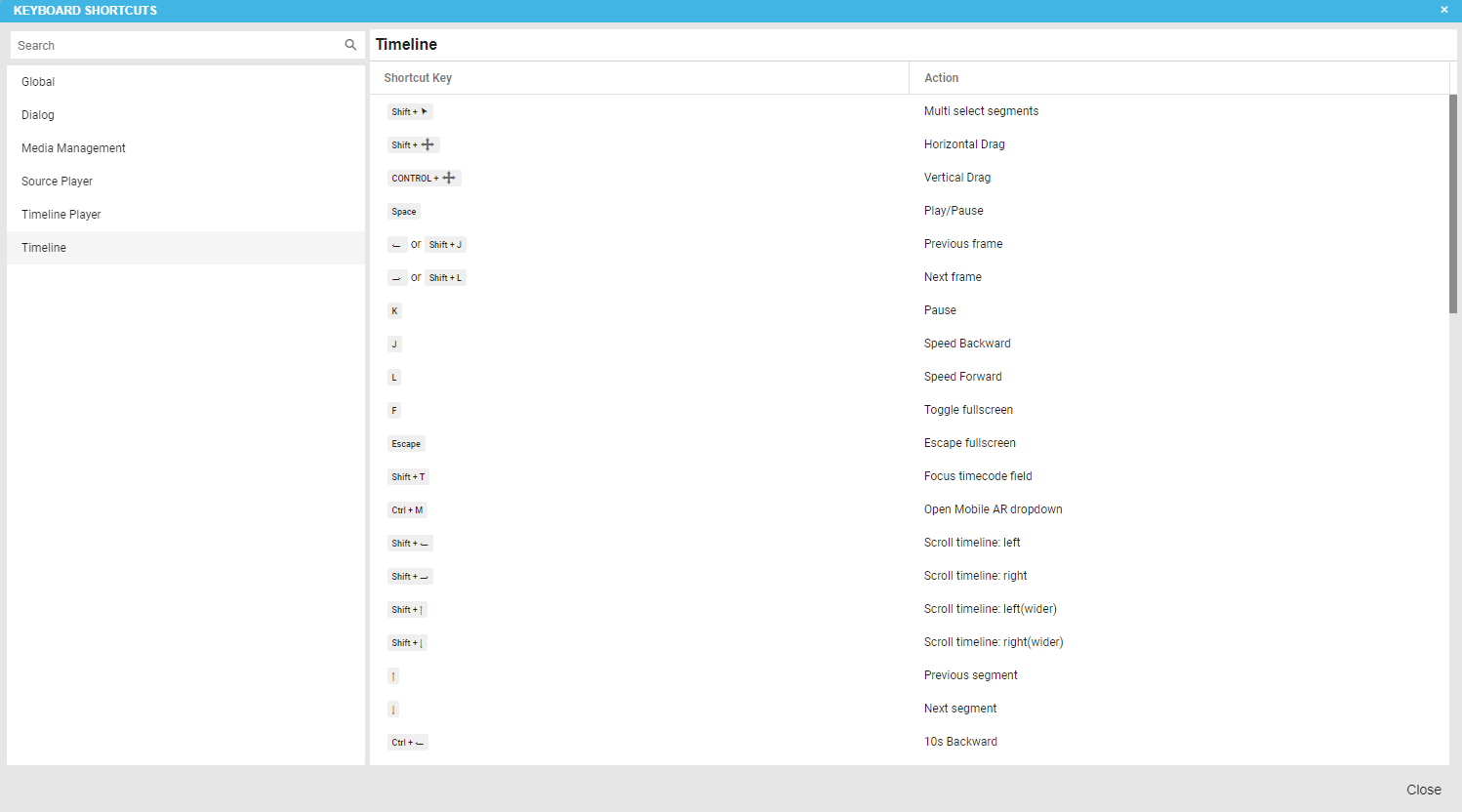

Keyboard Shortcut Info
Opens an info dialogue listing all the keyboard shortcuts available in VidiEditor. See also Keyboard Shortcuts.
Furthermore many VidiEditor options having their keyboard shortcuts display this in the tooltip when hovering the button.
Save Status Indicator
This icon indicates to the user if the timeline was saved successful or not (see Timeline Saving). It can be also used as button to save the timeline manually.
Reset Timeline
This option can be used to delete all work done on the timeline to reset it to the initial state. In result the user gets an empty timeline.
Add / Delete Tracks

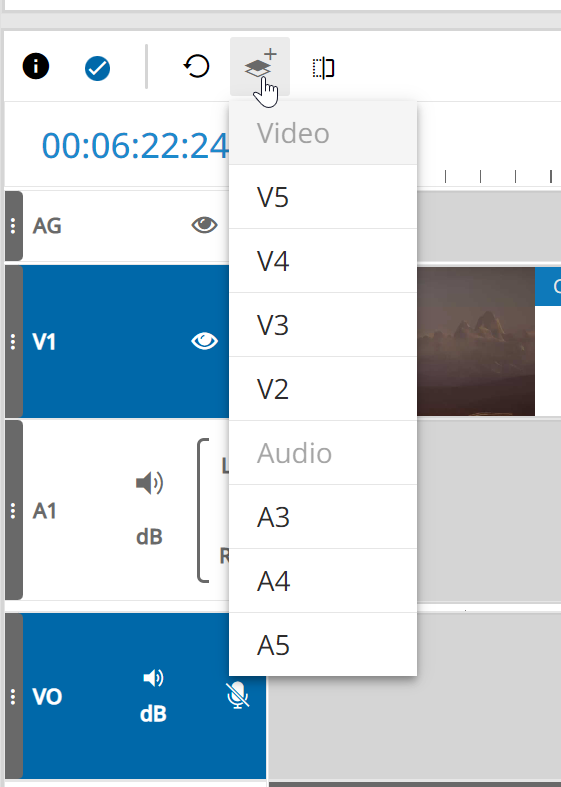

By default, VidiEditor projects are created with 2 video and 2 audio tracks. The “Add Track” button allows one to add up to 5 video and 5 audio tracks individually. The user just needs to select the wanted tracks from the dropdown being displayed when clicking the button to add them to the timeline.

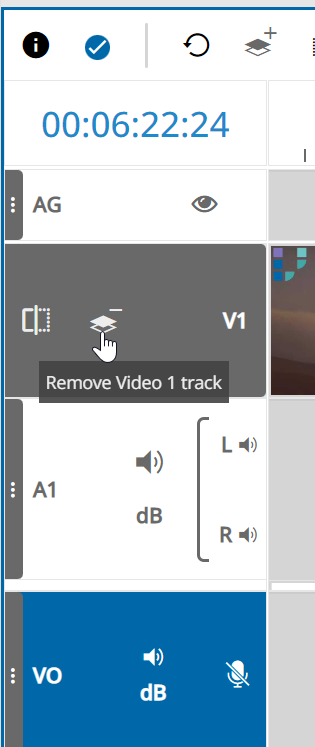

Deleting existing tracks from the timeline is possible on the track header:
see also section: Adjust timeline view and hide tracks
Hide Tracks
This allows to blend in / out existing tracks on the timeline. The difference to add/delete track is that the hide option is only a visualization, so it changes the view but not the state of the timeline itself. So it helps the user on organizing the working area but does not affect the content or state of the timeline at all.

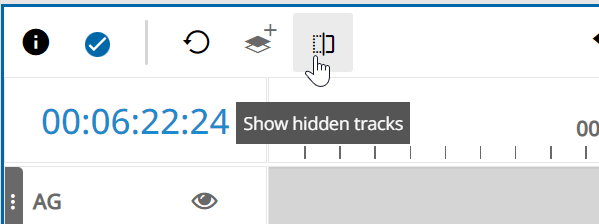

The button allows to blend in tracks that have been blended out already:
To blend out the tracks the trach header is used. See also Adjust timeline view and hide tracks .

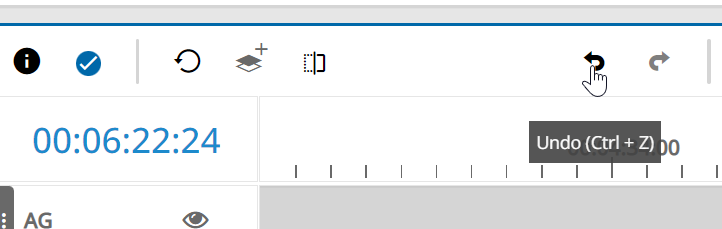

Undo / Redo
Undo and Redo: Selecting the "Undo" button will go back to one previous action. If after performing an "Undo" the user changes their mind, they can return to one action before the "Undo" by selecting the "Redo" button.
Please note that number of actions is limited and just considered until the browser is refreshed and to a maximum of 100 interactions.
Cut Tool

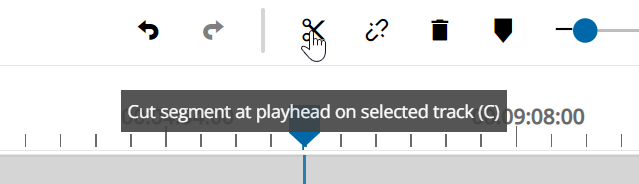

The Cut Tool: Performs a segment cut wherever the playhead is positioned in the timeline. The cut affects all segments of the selected track including its linked segments. Segments on not selected tracks will not be cut clicking the button. See also Cutting a Segment .
Please note: If all segments of all tracks should be cut the keyboard shortcut ctrl + k can be used.

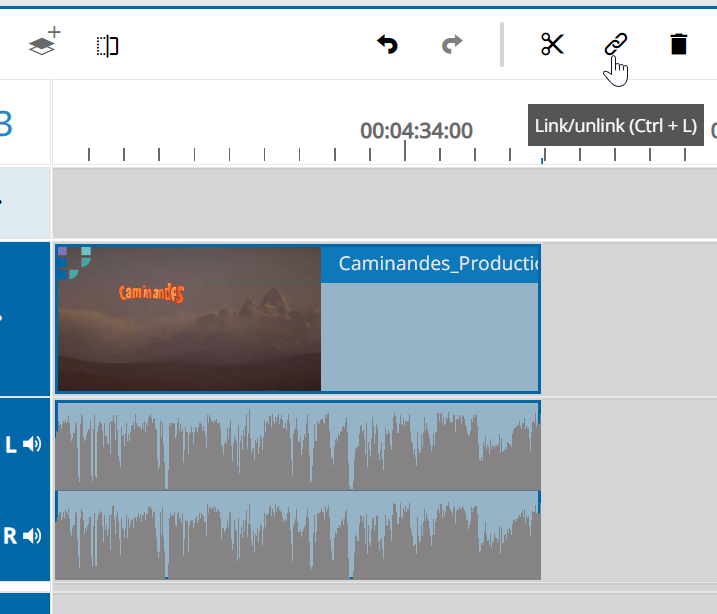

Link / Unlink
This options allows to unlink the video and audio segment of media from type video enabling the use to make compositions with overlapping audio / video areas. It can be only used for one selected segment to unlink and relink back the originally related audio and video elements. See also: Link - Unlink

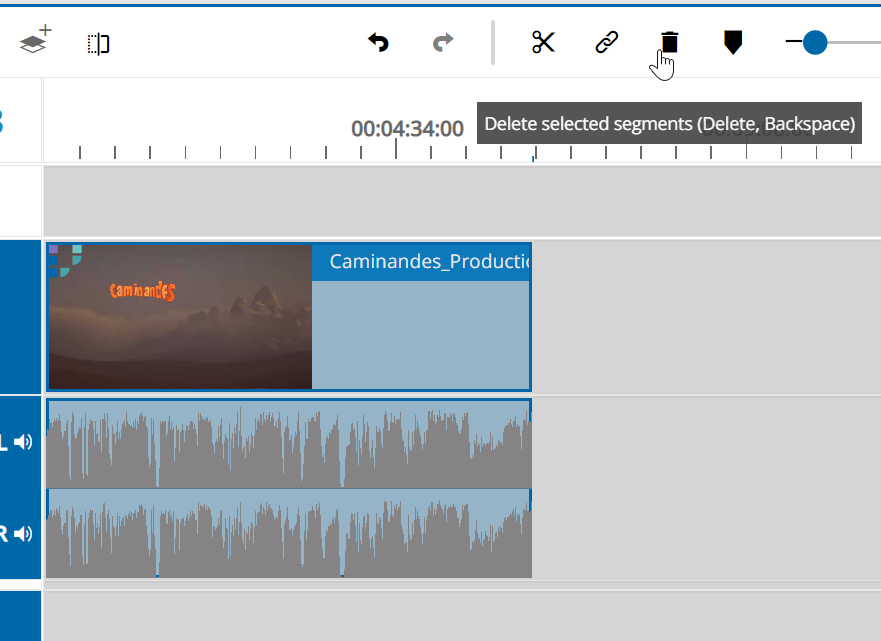

Delete Segment
Delete Selected: This removes the selected segments in the timeline. Please refer to the Delete and Ripple Delete section for more details.
Marker
This option allows to create timeline markers suitable for various scenarios such as annotating the timeline doing partial publishes or to generate timecode based metadata. Please see Timeline Markers for further information.
Zoom Timeline

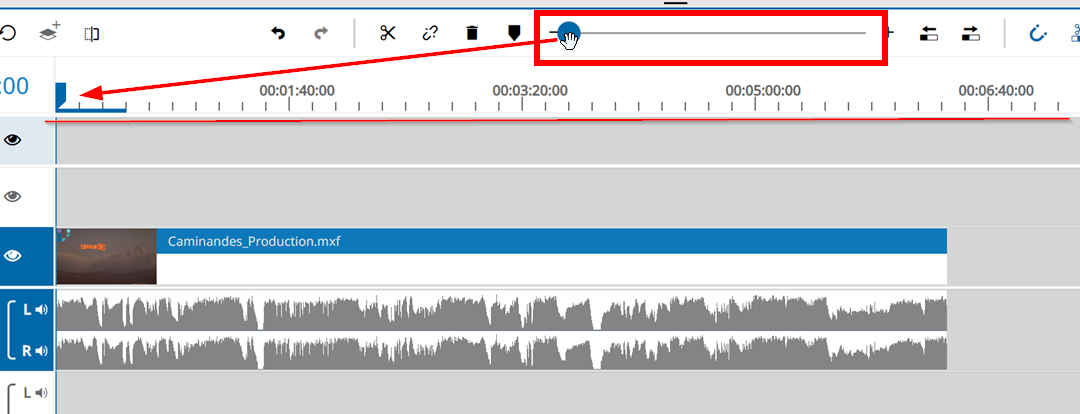

Zoom: By dragging the scale horizontally, users are able to zoom in or out of the timeline. As a result, the visually represented space between time intervals is either increased or decreased with the zoom.
It is important for users to note that users are able to scroll along the timeline (1).

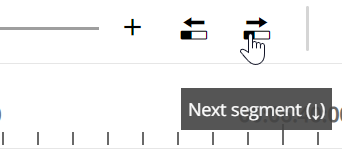

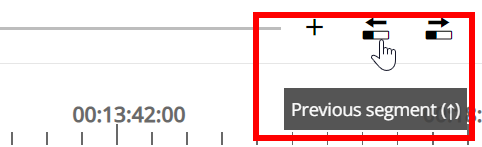

Cut Navigation
The timeline navigtaion buttons allow the user to navigate to previous and next Segment. Selecting either option will position the timelines playhead to the beginning of the previous or next segment in the timeline.
Snap

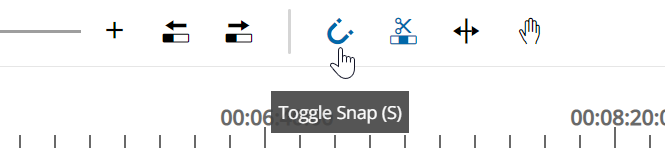

Snap: Selecting this option will activate the magnetic snap behavior when bringing timeline segments in close proximity to each other. This is used to automatically and accurately remove the gap between two segments frame accurate. See also Snap.

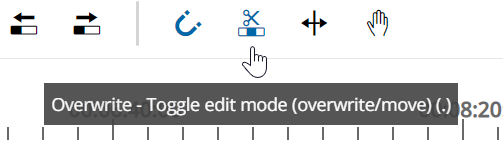

Move / Overwrite Mode
This toggle switches between the 2 modes: move and overwrite. This is related to segments added to and moved into/in the timeline. When using the move mode, one segment would not overwrite another segment on the same track. In result it automatically cuts and moves existing segments when moving a new segment on the same position. The overwrite mode will overwrite an existing segment when moving a new segment on the same position. Please check out Move / Overwrite Mode for a detailed explanation and Insert Edit Using Keyboard Shortcuts for a practical example on move / overwrite editing from the source preview player.
Ripple Edit Mode
This toggle switches the ripple edit mode on and off affecting the behaviour while triming segments. If it is turned on it will affect the behaviour of timeline segments that are in the timeline future seen from a changed segment. For example, shortening a segment in the middle of the timeline while trimming the out point will shift all following segments accordingly when the ripple edit mode is on. Please read Ripple Edit and Ripple Delete for a detailed explanation.
Cut Mode
The cut mode allows to activate a specific cut option on the timeline so the user can hover over segments using the mouse and cut directly in the timeline using the mouse cursor. See Cut Mode section for addition information.
Publish
To finalize a project and distribute it to a new video file, the transcoding of new media file can be started using the publish option. This will open a dialogue offering different options depending on the VidiEditor version and configuration used. Possibilities are to trigger a Vidispine conform job, a VidiFlow workflow, set a target format or storage, and to fill out metadata for the new item. A more detailed description of the options is provided in . Please see Publish for detailed informations.
