Transitions

VidiEditor makes it possible for one to add transitions on segments at the beginning or end of a segment, as well as on a cut position between two segments. The following types of segments are supported:

Type

In

Out

Cut

Video cross dissolve

Fades from below layer

Fades to below layer

Fades between 2 segments

Video dip to black dissolve

Fades from below layer

Fades to below layer

Fades between 2 segments

Video dip to white dissolve

Fades from below layer

Fades to below layer

Fades between 2 segments

Audio cross dissolve

Fades from silent

Fades to silent

Fades between 2 segments

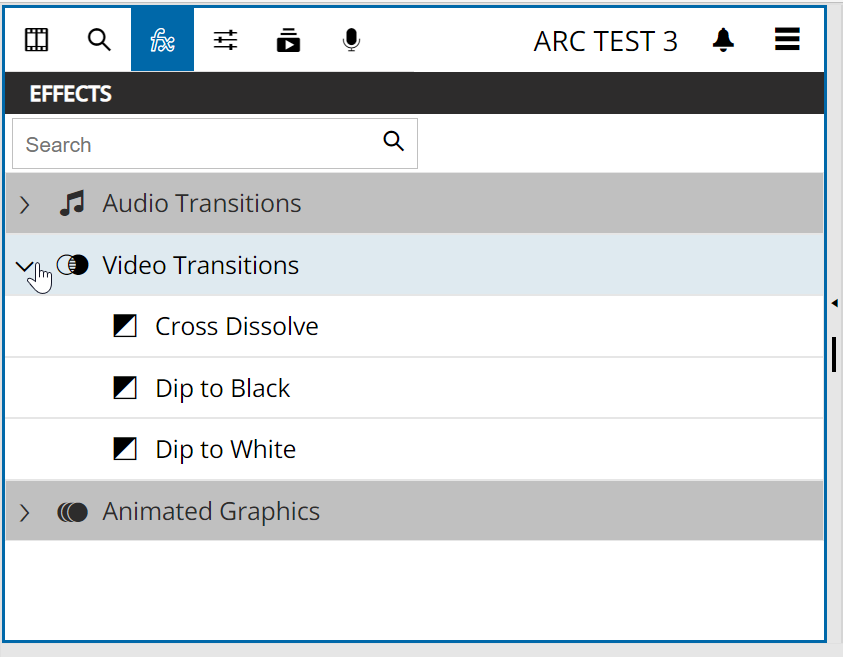

To add a dissolve, go to VidiEditor's effects panel and choose the desired transition. It can be selected from the effects pane listing available transitions.

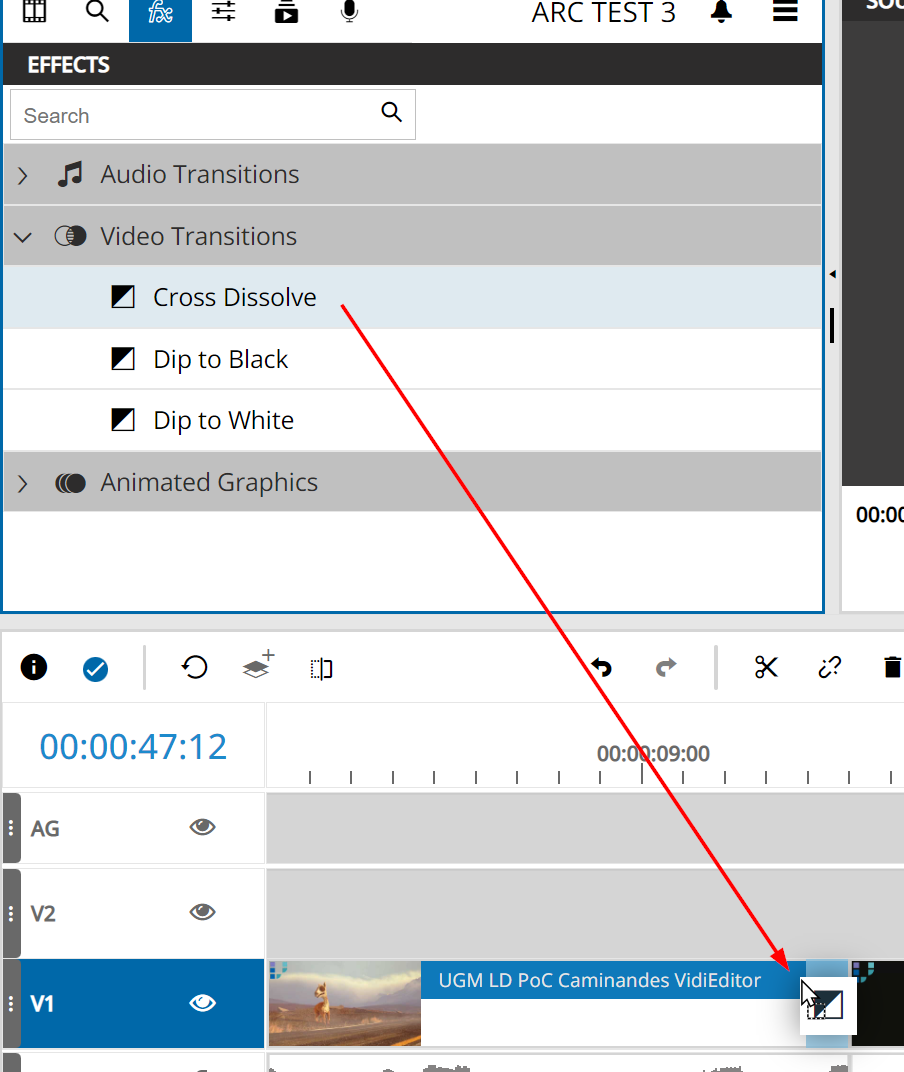

It can then be used in the timeline composition by dragging it onto a valid segments position.

After which, the effect will be added with its default length configured in ConfigPortal (see Timeline Configuration Parameters ). It can be easily adjusted with trimming the transitions length directly on the timeline or setting the in, out or duration in the settings pane after selecting a transition. The result will be output in the timeline player after adding the transition to the timeline.

Please note: VidiEditor validates the needed meet when dropping the transition to a position. In case not enough media material is available it will reject adding the transition.
